The NIK combines the MedSource Labs Decompression Needle and the Capnospot® from Pneumeric™ into one convenient package for the treatment of tension pneumothorax.

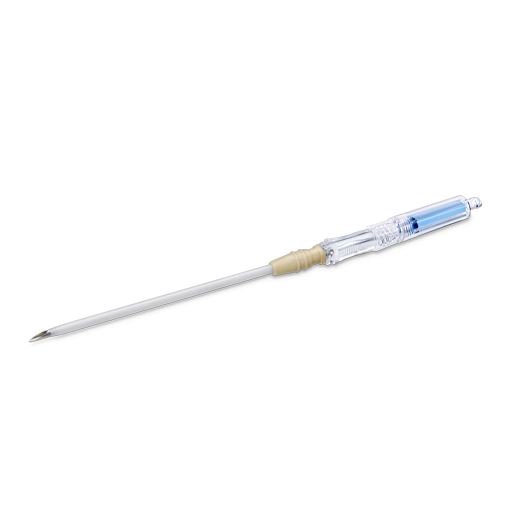

The MedSource Labs Decompression Needle is a deep-reaching catheter designed to release pressure in the pleural cavity. The Capnospot® is a one-of-a-kind visual indicator that provides confirmation of successful decompression. The Capnospot® attaches to the Decompression Needle with a standard luer fitting.
Product Specifications
Features & Benefits
- Packaged Size: 7″ x 3” metalized pouch with clear front
- Total combined package weight: 26g or 0.9oz
- Single Use Only
- Not made with natural rubber latex
- Not made with DEHP
- Buy American Act (BAA) Compliant
Decompression Needle:

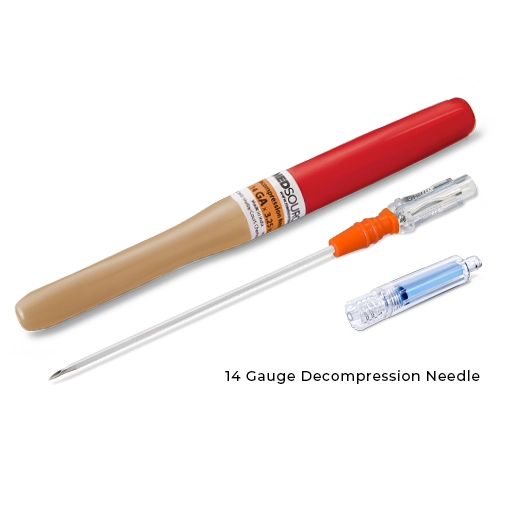

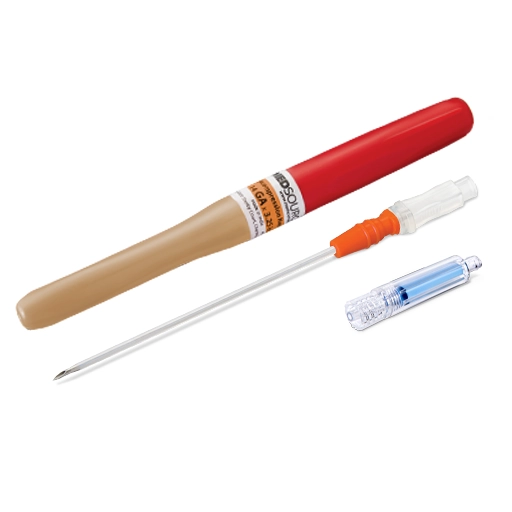

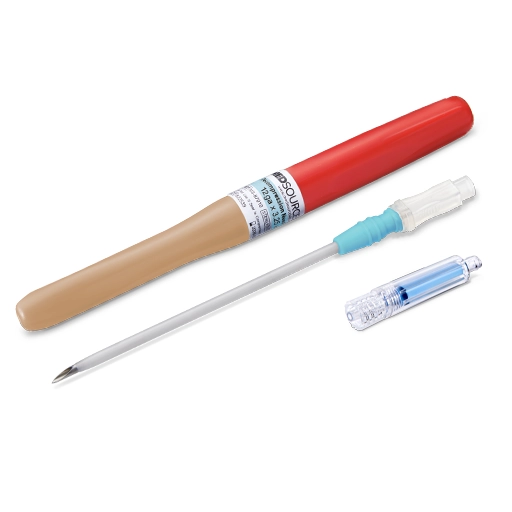

- Needle Size: 14, 12 and 10 Gauge x 3.25 inch
- Unit Weight: ~0.11g
- Twist off cap
- EO Sterilization
- PTFE Catheter material
Capnospot®:
- Unit weight: 10g or 0.35oz
- Colorimetric paper: Turns from blue to yellow with successful decompression
- Male luer lock ISO 80369 compliant
Decompression Needle:
Hard Shell Case – Rugged case protects user from accidental needlestick and ensures sterility of the device prior to use
Twist Open – Twisting motion designed to open case easily for quick access
Triple-Facet, Back Cut, Beveled Needle – Aids in reducing trauma at insertion site
Rigid PTFE Catheter Material – Strong catheter to withstand force of entry and maintain passage for relieving tension pneumothorax
Color Coded Catheter Hub – Consistent size confirmation
Contoured Grip – Supports steady grip and hold during emergency procedure
Capnospot®:
Objective Visual Confirmation – Indicates visually if decompression was successful or not within seconds, allowing immediate adjustment of the catheter

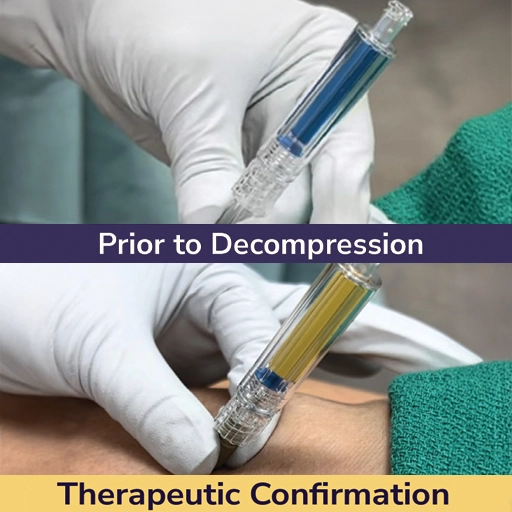

Color-Coded Confirmation – Blue prior to decompression; Yellow confirms CO2. As pneumothorax gas flows through the needle and Capnospot® device, dark blue colorimetric paper turns bright yellow when it comes into contact with CO2.
Simple Attachment – Standard luer lock fitting
Visibility – Functions in low-light environments
Product Variations
|
Item Number |
Description |
|
MS-87110 |
NIK Kit – 10G x 3.25” |
| MS-87112 |
NIK Kit – 12G x 3.25” |
| MS-87114 |
NIK Kit – 14G x 3.25” |
