Slide Style Safety IV Catheter with Pre-Attached Extension Set
Slide Style Safety IV Catheter with Pre-Attached Extension Set
Advanced design for seamless safety and better vein health.
Health care professionals subject themselves to the risks associated with blood-borne pathogen exposure every time they perform venipuncture. The ClearSafe Comfort® Closed System Safety IV Catheters are engineered to minimize these risks with a a pre-attached IV extensions set.
product downloads
FEATURES & BENEFITS
Triple-Facet, Back Cut, Beveled Needle – provides ease of insertion with increased patient comfort at insertion site
Gently Tapered Catheter Tip – provides smooth transition from needle to catheter during insertion
Ridged Catheter Hub – offers superior grip and stability during connection of IV administration sets
Pre-Attached IV Extension Set – 6 inch IV extension set minimizes risks of accidental disconnection and cross contamination from the inadvertent release of blood
Single or Dual Port – Featuring needle free connector compatible with a variety of devices
Push-Off Tab – assists with one-handed catheter advancement
Slide Style Needle Retraction Safety Mechanism – retracts needle fully and safely into the catheter body
Contoured Activation Slide – corrugated, ergonomically designed grips allow for one-handed catheter advancement
Flashback Chamber – allows for clear visual confirmation of successful venipuncture
Encapsulating Needle Shield – encases the needle when safety mechanism is activated, promoting needlestick safety and reducing exposure to bloodborne pathogens
Audible Click Lock Safety Mechanism – audible confirmation ensures the needle is safely encapsulated in the catheter body
specifications
- PUR catheter material
- Slide style needle retraction
- Incorporated 6" IV extension set
- Available in Single or Dual Port
- Needle-free connector
- Roberts clamp
- Ground stainless-steel needle
- Straight hub
- Disposable
- Non-pyrogenic
- Not made with natural rubber latex
- Not made with DEHP
- ISO compliant color coding
- Needlestick Safety and Prevention Act (NSPA) of 2000 compliant
- Radiopaque
- Country of origin: India
- Sterilization method: EO
item numbers

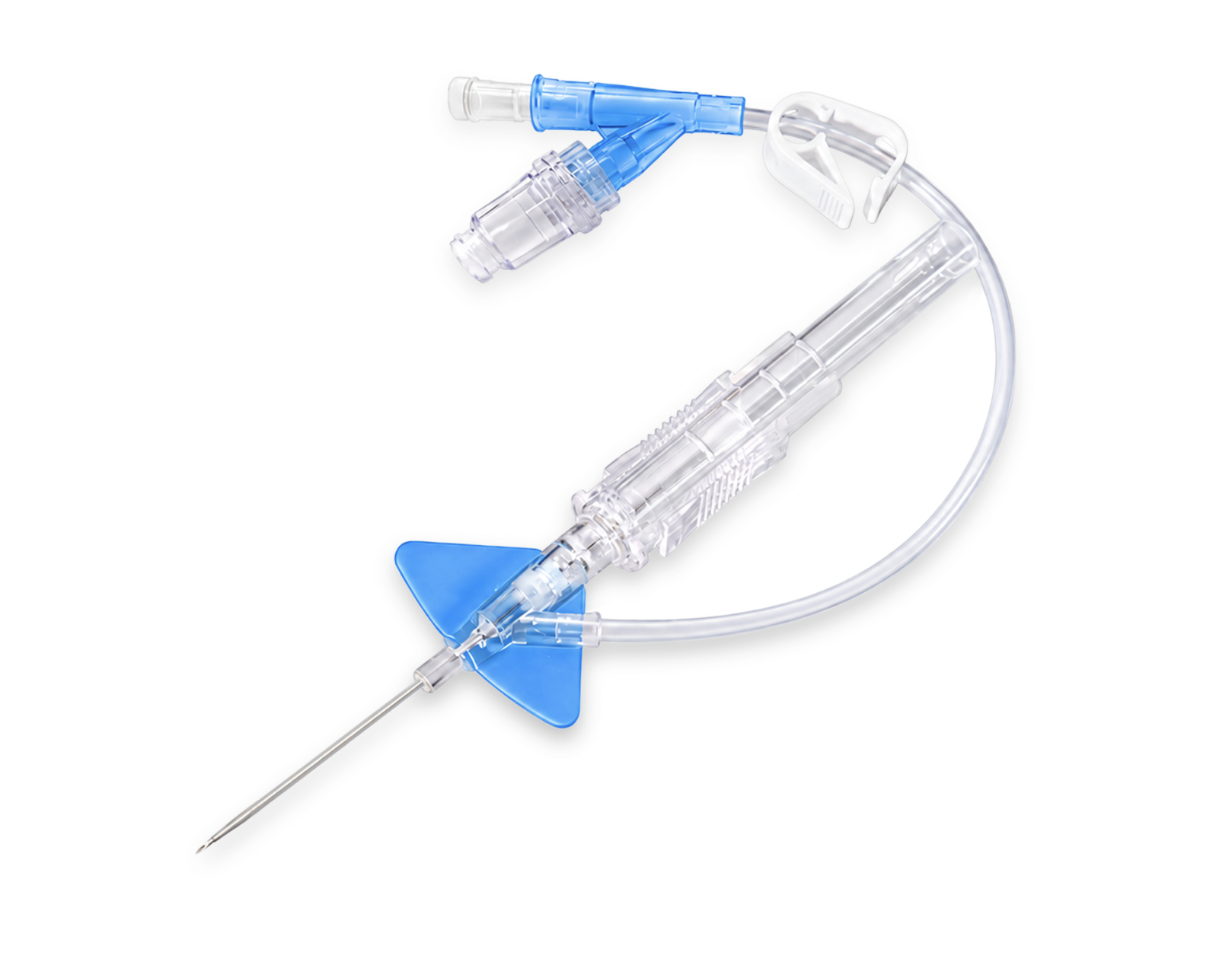

ClearSafe Comfort® CS Dual Port (PUR Material)
| Item number | Gauge Size | Length in mm | Length in inches | |
 |
MS-87318 | ClearSafe Comfort® CS Safety IV Catheter, 18G | 32 mm | 1.25″ |
 |
MS-87320 | ClearSafe Comfort® CS Safety IV Catheter, 20G | 32 mm | 1.25″ |
 |
MS-87322 | ClearSafe Comfort® CS Safety IV Catheter, 22G | 25 mm | 1″ |
 |
MS-87324 | ClearSafe Comfort® CS Safety IV Catheter, 24G | 19 mm | 0.75″ |

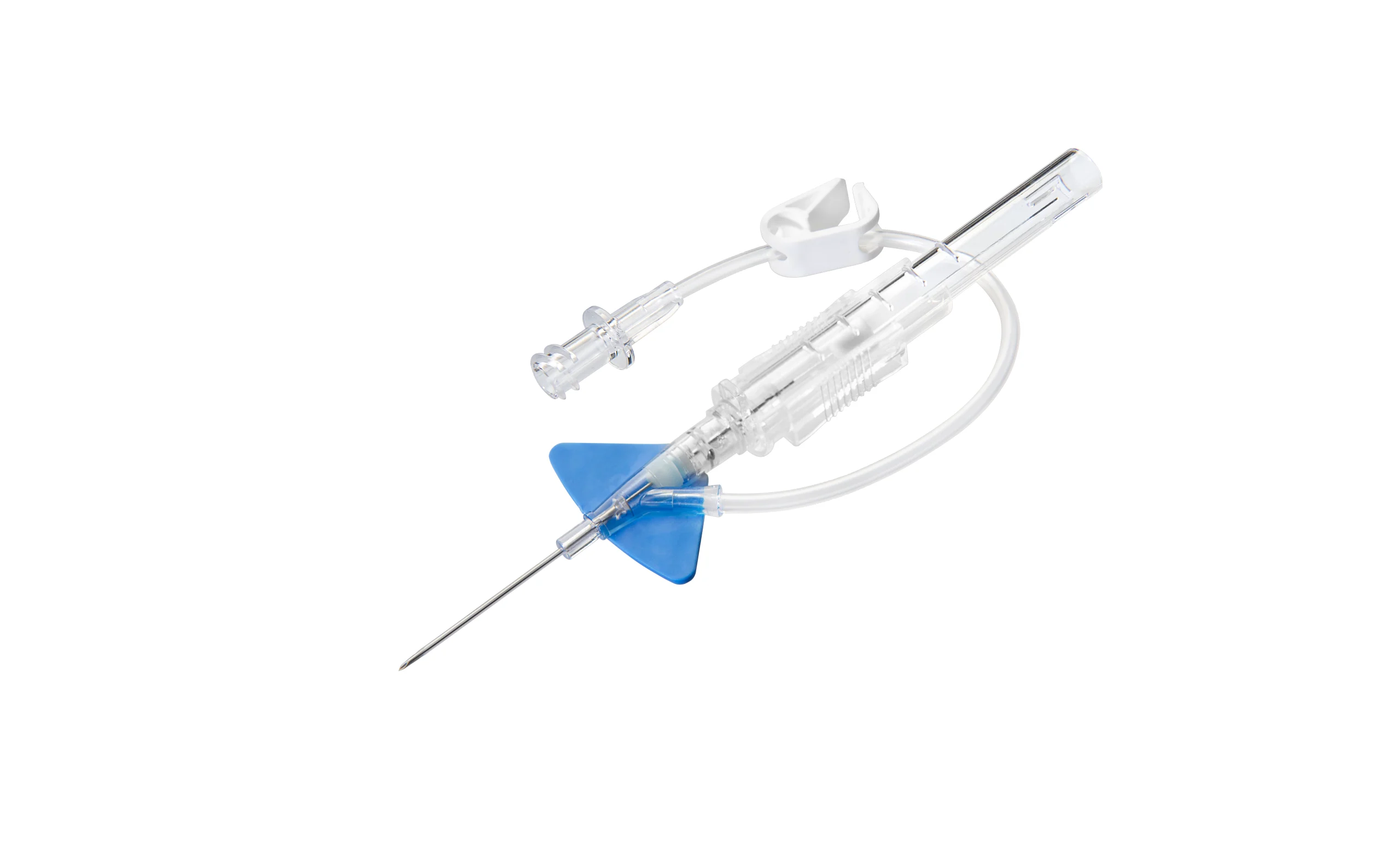

ClearSafe Comfort® CS Single Port (PUR Material)
| Item number | Gauge Size | Length in mm | Length in inches | |
|
MS-87218 | ClearSafe Comfort® CS Safety IV Catheter, 18G | 32 mm | 1.25″ |
|
MS-87220 | ClearSafe Comfort® CS Safety IV Catheter, 20G | 32 mm | 1.25″ |
|
MS-87222 | ClearSafe Comfort® CS Safety IV Catheter, 22G | 25 mm | 1″ |
|
MS-87224 | ClearSafe Comfort® CS Safety IV Catheter, 24G | 19 mm | 0.75″ |
